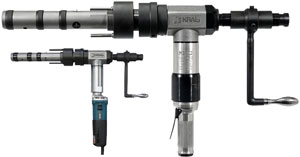

3WTTC-2000
Wheel Type Tube Cutter
 The
all new 3WTTC-2000 Wheel Type Tube Cutter for quick and productive
cutting and trimming of boiler tubes. It can be pneumatically or
electrically driven and uses an industry first 3 cutting wheel design,
engineered to provide unmatched performance.
The 3WTTC-2000
greatly reduces cutting time over traditional one wheel cutters
by utilizing the 3 point-centering cutter wheel design.
The tool does
not create any chips during the cutting process that need to be
collected, which greatly reduces work time and increases productivity.
Main
Technical Data
| Cutting
Range |
2",
2-1/2", 3" OD |
50.8,
63.5, 76.2 mm |
| Material |
ferrous
and non-ferrous |
| Cutting
Method |
3
cutting wheel |
| Power |
1.3
Hp |
| Free
Speed |
100
Rpm |
| Torque |
105
Ft. Lbs. |
140
Nm |
| Air
consumption |
55
cfm |
1.3
m3/min. |
| Width
without head |
2.32" |
59
mm |
| Height |
13.1" |
335
mm |
| Weight |
23
Lbs |
10.5
kg |
|
