Hydraulic Torque Wrenches
|
Simplex
offers a wide variety of hydraulic torque wrenches available in light
weight Square Drive design or the flattest Low Clearance wrenches
available. These tools are the most
versatile in the business. Optional attachments and accessories are
available to complement both style wrenches. |
| |
| WT-Series
Square Drive Wrenches |
 The
Simplex Square Drive wrench combines strength and simplicity to handle
the toughest bolting jobs. Simplex square drive wrenches come with
a push through drive in the 3/4”, 1”
and 1 1/2” models, eliminating pulling the drive out of a wrench
to change drive direction. The WT-Series wrenches can react off the
wrench body for close quarter applications. |
Features
| • |
Alloy
square drive GUARANTEED not to break. |
| • |
No
reaction pawl, ELIMINATES tool lockup. |
| • |
27°
Stroke for high performance and speed. |
| • |
Torque
chart & safety information engraved on the tool. |
| • |
Push
through square drive switches from loosen to tighten instantly. |
| • |
Light
weight, high torque ratio. |
| • |
Compact
Uni-Body design for maximum strength. |
| • |
Accurate
to within ± 3%. |
| • |
Slim
nose radius for easy positioning in close quarters. |
| • |
No
leak couplers that swivel on double axis for easy operation. |
| • |
Custom
wrenches available upon request. |
| • |
Special
reaction arms and reaction arm extensions available. |
| • |
Anti-backlash
mechanism prevents tool from backdriving. |
| • |
Internal
reaction arm spline allows operator to react against the tool
body without risk of damage. |
|
| |
| Specifications |
 |
| |
| WX-Series
Low Clearance Wrenches |
 Simplex
wrenches are the flattest wrench available, utilizing a patented low
height piston. TheSimplex WX series wrenches fit in places competitive
wrenches cannot. The low clearance wrenches have a wide choice of
links available in 1/16” increments. Metric sizes are also available.
Several optional accessories are available such as hex reducers, hex
to square drive adaptors and different reaction arms. |
Features
| • |
Patented
piston design for lower profile. |
| • |
Wide
range of links in 1/16th increments. |
| • |
In-line
reaction for maximum strength. |
| • |
Light
weight, high torque ratio. |
| • |
Quick
and easy interchangeable links requiring no tools. |
| • |
Accurate
to within ± 3%. |
| • |
Slim
nose radius for easy positioning in close quarters. |
| • |
No
leak couplers that swivel on double axis for easy operation. |
| • |
Plated
wrenches resist corrosion. |
| • |
Links
in both imperial and metric measurements. |
| • |
Optional
reducer inserts available in imperial and metric sizes. |
| • |
Custom
wrenches available upon request. |
|
| |

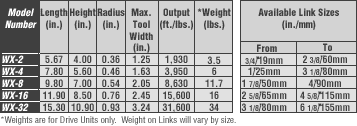

| Specifications |
 |
To
receive more information about the above products, please call, fax,
e-mail or use our Inquiries
page
|
