TFI Specials

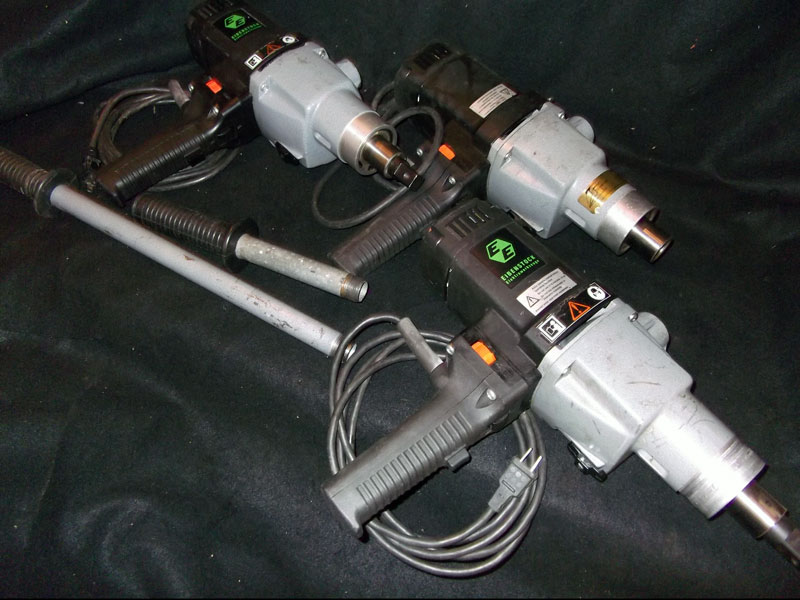

TFI-55FTRM - Firetube Boiler Tube Rolling Motor
Ever since the departure of the Chicago Pnuematic 200 RPM motor the Industry has been looking for a quality, durable, high torque motor for firetube boiler tube rolling. We feel that we have found just that motor in the TFI-55FTRM. This product is manufactured in Germany by a company that has been in the motor business since 1919. Their products are time proven and durable.

This powerful 16 AMP (1,800W) motor has two changeable gear ratios and variable speed adjustment in each. This allows the operator to customize the motor's power and RPM to his particular application. The adjustable torque control feature allows the operator to preset the motor overload shutoff at a value that would prevent "over-rolling" for his particular application.


Specifications
Rated Voltage   110 VAC
Rated Power Input   1,800 W
Frequency   40-60 Hz
Load Speed 1st Gear 60-140 RPM
  2nd Gear 200-470 RPM
Weight   14 lbs.
Protection Class   II







# 3 Morse Female Taper on Shank

Adapter supplied upon request
